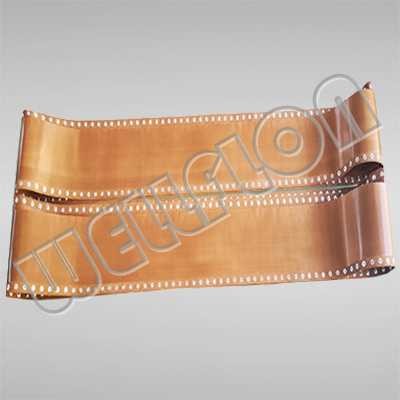

PTFE Teflon Side Sealing Belts

Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass Fabric, Kevlar
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

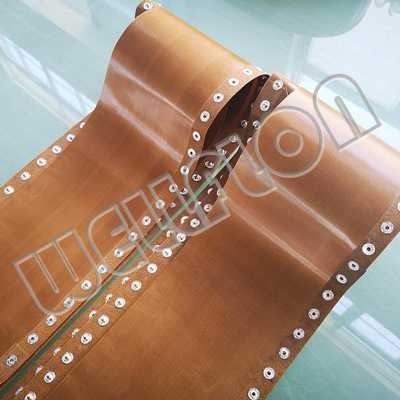

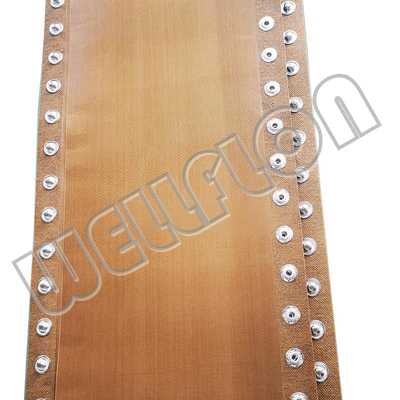

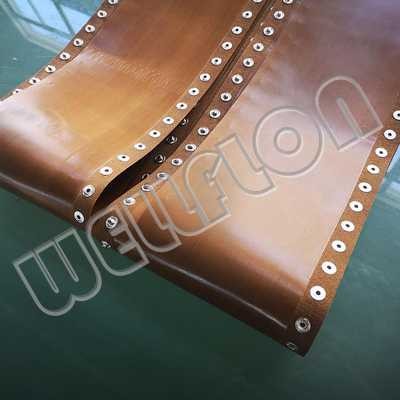

CHANGWEI ® PTFE Teflon Side Sealing Belts are used best PTFE Teflon coated fiberglass fabric. then to make it into various PTFE Teflon seamless belts in different thickness, widths, perimeters and colors. These PTFE Teflon Side Seal Belts are widely used in the rolled paper products industryas as the conveyor belt. These belts are guided through the heat-seal units by PTFE Teflon Side Seal Belts running in tandem on either side of the product. The belts also provide a protective, non-stick barrier between the heat-seal elements, allowing the heat to transfer through to melt and seal the film wrapping, while preventing the molten film from sticking to the elements. Some belt applied the Raised metal rivet-like domes mate with
grooved roller tracking systems to avoid belt deviation during operation.

Main Features of PTFE Teflon Side Sealing Belts:

● It can work in the temperature environment of -200℃~+260℃;
● Excellent non-stick surface;
● Dimensional stability, no deformation;
● Excellent mechanical strength;
● High ignition point, non-flammable;
● Good heat transfer performance.

Available Belt Types of PTFE Teflon Side Sealing Belts:

● PTFE Teflon Side Seal Belts with joint: based on seamless glass fiber cloth or Kevlar material, coated with high-quality PTFE resin.
● PTFE Teflon Side Seal Belts without joint: high-strength glass fiber yarn or Kevlar impregnated with PTFE resin, then to be connected by heat sealing.
● Double-layer composite PTFE Teflon Side Seal Belts: It is made of high-light glass fiber yarn or Kevlar braided and impregnated with PTFE resin by a unique process. The joint is flat, the walking stability is good, and it is not easy to deviate.

Related Certificates of PTFE Teflon Side Sealing Belts:

Our brand WELLFLON ® mainly focus on the field of industrial coatings, the main products are PTFE Teflon coated fiberglass fabrics, PTFE Teflon adhesive tapes, PTFE Teflon conveyor belts, PTFE Teflon seamless belts and so on. The Brand COOKAFLON ® positions in civilian field of non-stick cookware and barbecue utensils,Such as PTFE Teflon Non-stick Baking or Grilling liners,Meshes, Bags, Baskets, etc. If you have any requests, please contact us without hesitation!
