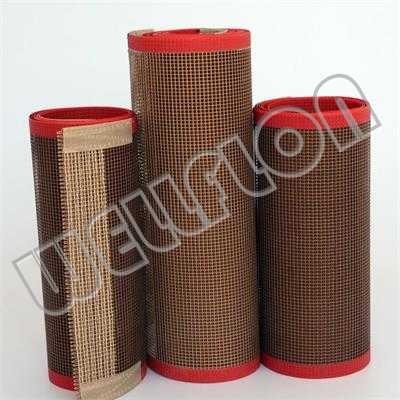

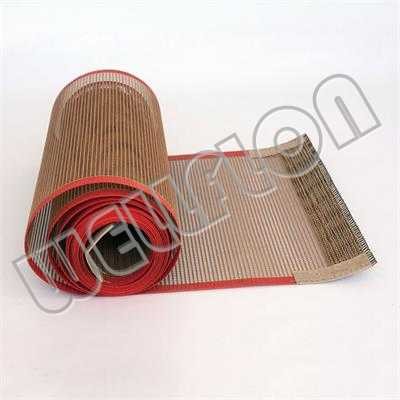

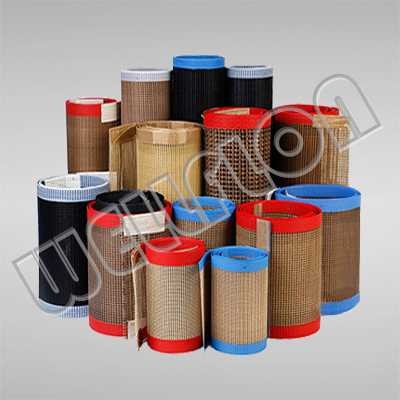

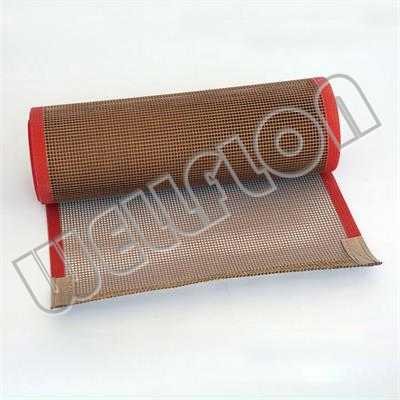

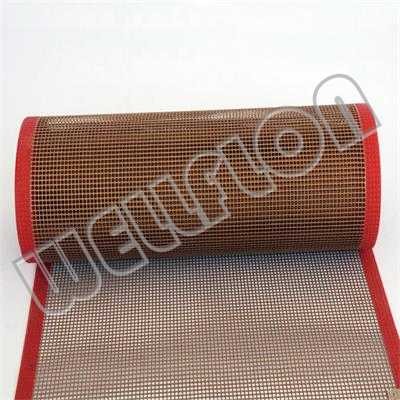

PTFE Teflon Open Mesh Conveyor Belts

Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass Mesh
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4200mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

PTFE Teflon conveyor belt is also known as PTFE fiberglass conveyor belt, Teflon fiberglass conveyor belt, PTFE high temperature resistant conveyor belt. PTFE Teflon conveyor belts are divided into two types: PTFE Teflon Open mesh belt and PTFE Teflon fiberglass fabric belt. Both are based on glass fiber fabric coated with PTFE (Teflon®) resin to make the base fabric of PTFE Teflon conveyor belt. Among them, the specification of PTFE Teflon open mesh conveyor belt is defined by the size of the mesh, mainly 1 ×1MM, 2×2.5MM, 4×4MM, 10×10MM and other meshes, and according to the warp and weft, there are single-weft and double-weft PTFE Teflon open mesh conveyor belts. PTFE Teflon fiberglass fabric conveyor belt is based on different specifications of thickness, the thinnest can reach 0.08 MM.

CHANGWEI PTFE Teflon Open Mesh Conveyor Belts are made of suspended polytetrafluoroethylene (commonly known as plastic king) emulsion and impregnated with high-performance glass fiber mesh. It is a high-performance, multi-purpose composite material new product. CHANGWEI has developed a series of Teflon mesh conveyor belt products for textile dryers. Our mesh belts are widely used in printing surface drying and fabric drying at high speed and high temperature. The 4*4mm and 2*2mm pore diameters have a high surface opening ratio, allowing them to achieve the best air permeability and the lowest heat loss during work and operation. Belt width and length are stable over all operating temperature ranges.

Main Features of PTFE Teflon Open Mesh Conveyor Belts:
● Temperature resistance - from low temperature -140℃ to high temperature 260℃;
● Air permeability - the air permeability of the conveyor belt, reducing the consumption of heat source and improving the drying efficiency;
● Corrosion resistance - unaffected by most chemicals and solvents;
● Anti-adhesiveness - it can be easily removed for almost all adhesives such as resins, paints, chemicals, etc.;
● Bending fatigue resistance - it has high tensile strength and bending fatigue resistance, and can be used in small wheel warps.

Main Application Range of PTFE Teflon Open Mesh Conveyor Belts:
● Drying machines for non-woven fabrics, printed fabrics, silk printing and dyeing, etc.;
● Apparel fabrics, heat shrinking equipment for high frequency and UV drying;
● All kinds of food drying, heat drying conveyor belt for quick-frozen food;
● Polishing and waxing of paper, oiling equipment for equipment installation;
● It is suitable to use Teflon grid conveyor belt for occasions requiring hot air flow and heat processing transmission conditions.

Main Specifications of Mesh for PTFE Teflon Open Mesh Conveyor Belts:

Item	Mesh Size	Material	Thickness	Weight	Temperature	Max Width	Tensile Strength
CWM-1010	1x1mm	Fiberglass	0.5mm	370g/m2	-70 ～ 320 ℃	4000mm	310/290N/cm
CWM-2020	2x2mm	Fiberglass	0.7mm	450g/m2	-70 ～ 320 ℃	4000mm	350/310N/cm
CWM-4040A	4x4mm	Fiberglass	1.0mm	400g/m2	-70 ～ 320 ℃	4000mm	390/320N/cm
CWM-4040E	4x4mm	Fiberglass	1.0mm	450g/m2	-70 ～ 320 ℃	4000mm	390/320N/cm
CWM-4040KB	4x4mm	Kevlar/Fiberglass	1.2mm	600g/m2	-70 ～ 320 ℃	4000mm	895/370N/cm
CWM-4040H	4x4mm	Fiberglass	1.0mm	500g/m2	-70 ～ 320 ℃	4000mm	395/370N/cm
CWM-4040K	4x4mm	Fiberglass	1.0mm	500g/m2	-70 ～ 320 ℃	4000mm	900/600N/cm
CWM-4040S	4x4mm	Fiberglass	1.0mm	550g/m2	-70 ～ 320 ℃	4000mm	395/370N/cm
CWM-100100	10x10mm	Fiberglass	1.2mm	450g/m2	-70 ～ 320 ℃	4000mm	360/300N/cm
CWM-0510	0.5x1mm	Fiberglass	0.5mm	420g/m2	-70 ～ 320 ℃	4000mm	310/290N/cm
CWM-2025	2x2.5mm	Fiberglass	0.9mm	600g/m2	-70 ～ 320 ℃	3000mm	390/320N/cm

Related Certificates of PTFE Teflon Open Mesh Conveyor Belts:

Our brand WELLFLON ® mainly focus on the field of industrial coatings, the main products are PTFE Teflon coated fiberglass fabrics, PTFE Teflon adhesive tapes, PTFE Teflon conveyor belts, PTFE Teflon seamless belts and so on. The Brand COOKAFLON ® positions in civilian field of non-stick cookware and barbecue utensils,Such as PTFE Teflon Non-stick Baking or Grilling liners,Meshes, Bags, Baskets, etc. If you have any requests, please contact us without hesitation!
