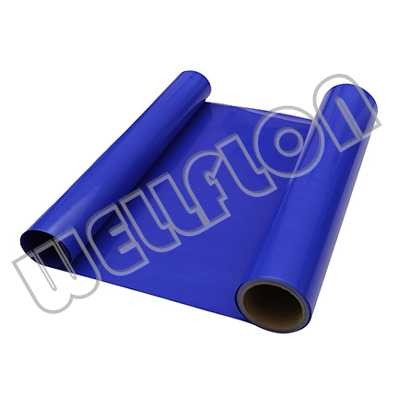

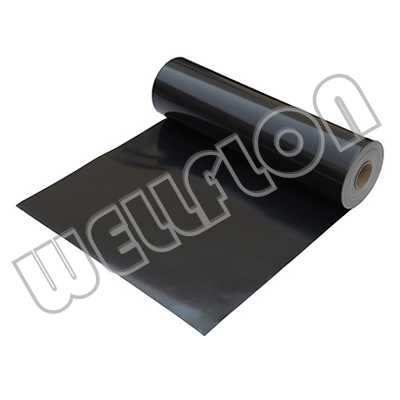

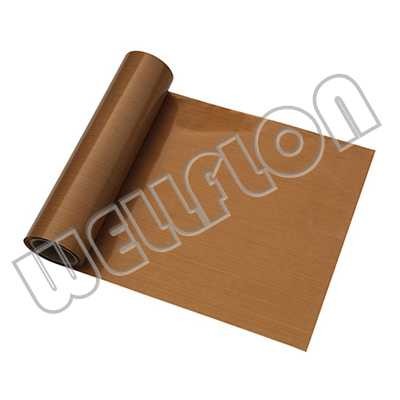

PTFE Teflon Coated Fiberglass Fabrics

Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

CHANGWEI High-temperature resistant PTFE Teflon Coated Fiberglass Fabrics are made of high-quality glass fiber fabric compounded with PTFE resin to make a high-temperature resistant fabric with smooth surface and high brightness. In addition to its excellent release properties, wear resistance, low friction coefficient and corrosion resistance, the fabric can also maintain its original physical form without deformation during processing at temperatures ranging from -170°C to +260°C. In addition, in view of its non-toxic, odorless and tasteless characteristics, it has been approved by the US FDA to be widely used in food processing, packaging and other processing fields.

Main Features of PTFE Teflon Coated Fiberglass Fabrics:
● Anti-adhesive, easy to clean. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
● Very low coefficient of friction (0.05-0.1), the best choice for oil-free self-lubrication;
● Excellent temperature resistance, PTFE Teflon Coated Fabrics can be used for a long time in the temperature range of -170℃~+260℃. After practical application, if placed at 250°C for 200 days continuously, not only the strength will not decrease, but also the weight will not decrease; if placed at 380°C for 120 hours, the weight will only decrease by about 0.6%; at -180°C Under ultra-low temperature conditions, no cracks will occur and the original softness will be maintained;
● Safe and non-toxic, suitable for food production;
● Can resist the corrosion of almost all chemicals;
● Good dimensional stability and strong tensile strength, with good mechanical properties;
● PTFE Teflon Coated Fabrics has good flexibility and folding resistance;
● High insulation performance (small dielectric constant: 2.6, tangent below 0.0025);
● Resistant to microwave, high frequency, purple and infrared rays.

Main Application Range of PTFE Teflon Coated Fiberglass Fabrics:
● Mold: mold demoulding;
● Clothing: anti-adhesive linings, gaskets, coverings and fusing belts;
● Packaging: Shrink film wrapping and side tape sealing;
● Welding of plastic products: welding cloth for welding; plastic sheet, film, heat-sealing sheet lining tape. ;
● High electrical insulation: electrical insulation tape base, spacers, gaskets, lining rings. High frequency copper clad laminate;
● Heat-resistant cladding layer: laminated base material, wrapping with heat insulation body;
● Food processing: heat sealing, frozen food transportation, defrosting belt, drying belt, microwave grill liner, oven baking liner;
● Fusing/ Laminating Belts: transfer printing ironing table cloth, carpet adhesive curing conveyor belt, rubber vulcanization conveyor belt, abrasive sheet curing release cloth, etc.;
● Pressure-sensitive tape base fabric;
● Architectural membrane materials: canopy of various sports venues, station pavilions, parasols, landscape canopies, etc.;
● PTFE Teflon Coated Fiberglass Fabrics are used for anti-corrosion coating of various petrochemical pipelines, environmental desulfurization of power plant exhaust gas, etc.;
● Flexible compensators, friction materials, grinding wheel slices;
● "Anti-static PTFE Teflon Coated Fiberglass Fabrics" can be made after special processing.

Main Specifications of PTFE Teflon Coated Fiberglass Fabrics:

Item	Color	Thickness	Max Width	Weight	Tensile Strength	Temperature
CWF-T0158	Brown/Black/White	0.08mm	1250mm	158±5g/m2	500/480N/50mm	-70~280 ℃
CWF-T0160	Brown/Black/White	0.08mm	1250mm	160±5 g/m 2	620/460N/50mm	-70~280 ℃
CWF-T0180	Brown/Black/White	0.08mm	1250mm	180±5 g/m 2	930/720N/50mm	-70~280 ℃
CWF-T0260	Brown/Black/White	0.13mm	1250mm	260±5 g/m 2	100/1000N/50mm	-70~280 ℃
CWF-T0275	Brown/Black/White	0.13mm	1250mm	275±5 g/m 2	1000/960N/50mm	-70~280 ℃
CWF-T0290	Brown/Black/White	0.13mm	1250mm	290±5 g/m 2	910/880N/50mm	-70~280 ℃
CWF-T0395	Brown/Black/White	0.18mm	1250mm	395±5g/m 2	1600/1600N/50mm	-70~280 ℃
CWF-T0415	Brown/Black/White	0.18mm	1250mm	415±5 g/m 2	1500/1500N/50mm	-70~280 ℃
CWF-T0490	Brown/Black/White	0.25mm	2800mm	490±5 g/m 2	2100/1800N/50mm	-70~280 ℃
CWF-T0510	Brown/Black/White	0.25mm	2800mm	510±5 g/m 2	2800/2700N/50mm	-70~280 ℃
CWF-T0660	Brown/Black/White	0.35mm	3200mm	660±5 g/m 2	2700/2600N/50mm	-70~280 ℃
CWF-T0680	Brown/Black/White	0.35mm	3200mm	680±5 g/m 2	2100/2200N/50mm	-70~280 ℃
CWF-T0780	Brown/Black/White	0.40mm	3500mm	780±5 g/m 2	2900/3100N/50mm	-70~280 ℃
CWF-T0820	Brown/Black/White	0.40mm	3500mm	820±5 g/m 2	3000/2900N/50mm	-70~280 ℃
CWF-T1150	Brown/Black/White	0.65mm	4000mm	1150±5 g/m 2	4200/4000N/50mm	-70~280 ℃
CWF-T1550	Brown/Black/White	0.90mm	4000mm	1550±5 g/m 2	6300/5800N/50mm	-70~280 ℃
CWF-T1650	Brown/Black/White	0.90mm	4000mm	1650±5 g/m 2	6150/5300N/50mm	-70~280 ℃

*If there are special specifications, our company can offer customize service.

Our brand WELLFLON ® mainly focus on the field of industrial coatings, the main products are PTFE Teflon coated fiberglass fabrics, PTFE Teflon adhesive tapes, PTFE Teflon conveyor belts, PTFE Teflon seamless belts and so on. The Brand COOKAFLON ® positions in civilian field of non-stick cookware and barbecue utensils,Such as PTFE Teflon Non-stick Baking or Grilling liners,Meshes, Bags, Baskets, etc. If you have any requests, please contact us without hesitation!
